7  Module 6 — Multi-Panel Figures

This module is the matplotlib equivalent of facet_wrap() and facet_grid() in ggplot2, except matplotlib does not auto-facet. You decide the grid, then populate each cell.

More work, more control.

The mental model:

┌──────────────────────────────────────────────────────────┐
│ A Figure can hold many Axes objects in a layout.         │
│ You choose the layout, then draw on each Axes one at     │
│ a time. Each Axes is independent: its own data, title,   │
│ ticks, colors, and annotations.                          │
└──────────────────────────────────────────────────────────┘

Matplotlib gives several ways to lay out multiple panels, in increasing order of flexibility:

1. plt.subplots(nrows, ncols) — regular grid; useful for most cases
2. subplot_mosaic("AB;CC") — named, irregular grid; modern favorite
3. GridSpec — full control over rows, columns, and spans
4. fig.add_axes([x, y, w, h]) — place an Axes at exact coordinates

Start with plt.subplots(). Use subplot_mosaic() when the layout becomes irregular. Learn GridSpec when subplot_mosaic() is not enough. Use fig.add_axes() mostly for inset plots.

7.1 1. plt.subplots() for regular grids

The common pattern is to create a Figure plus an array of Axes objects.

import matplotlib.pyplot as plt
import numpy as np

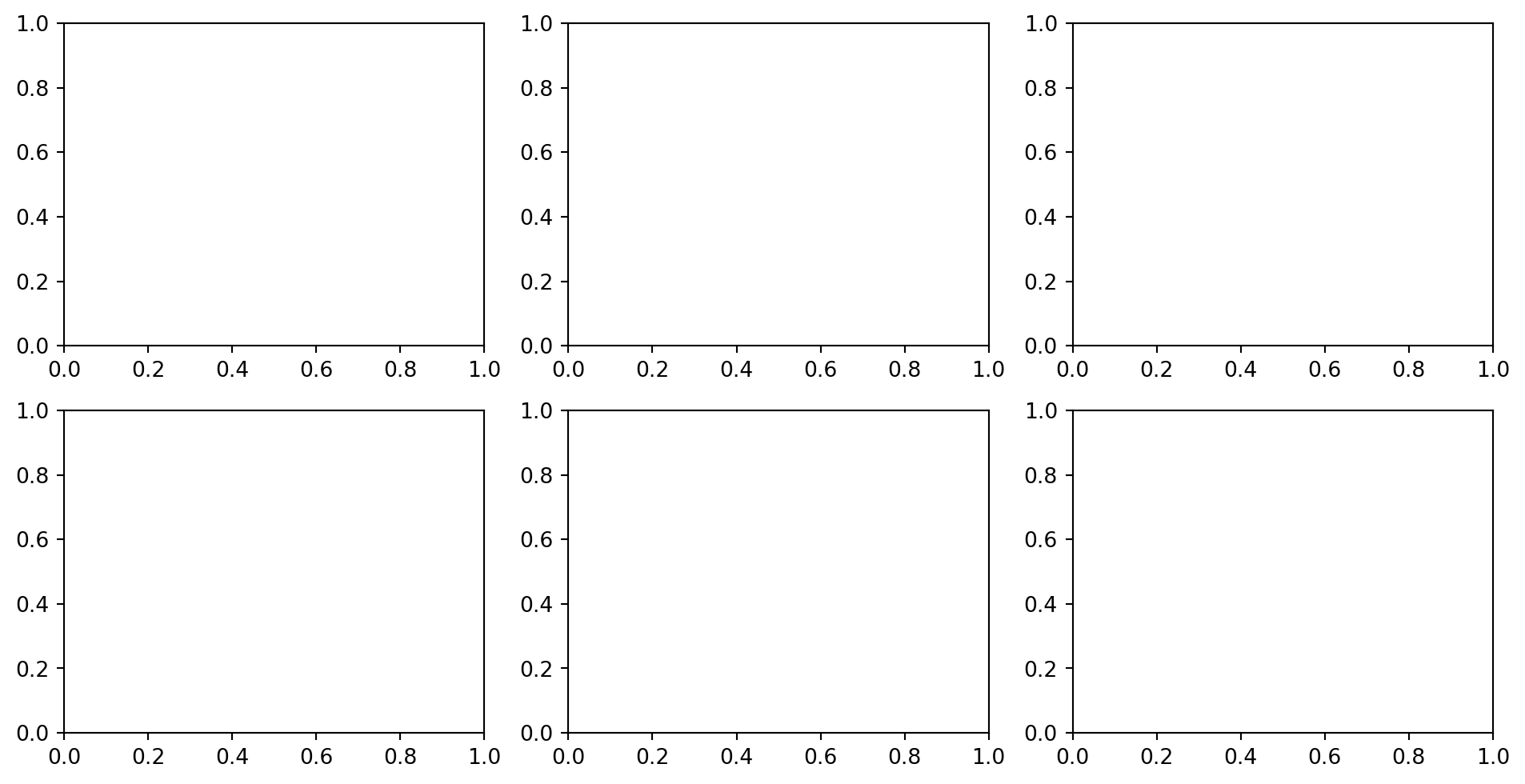

fig, axes = plt.subplots(nrows=2, ncols=3, figsize=(12, 6))
print(axes.shape)
plt.show()

(2, 3)

For plt.subplots(2, 3), axes is a 2D NumPy array of Axes objects with shape (2, 3). Individual panels are accessed by indexing.

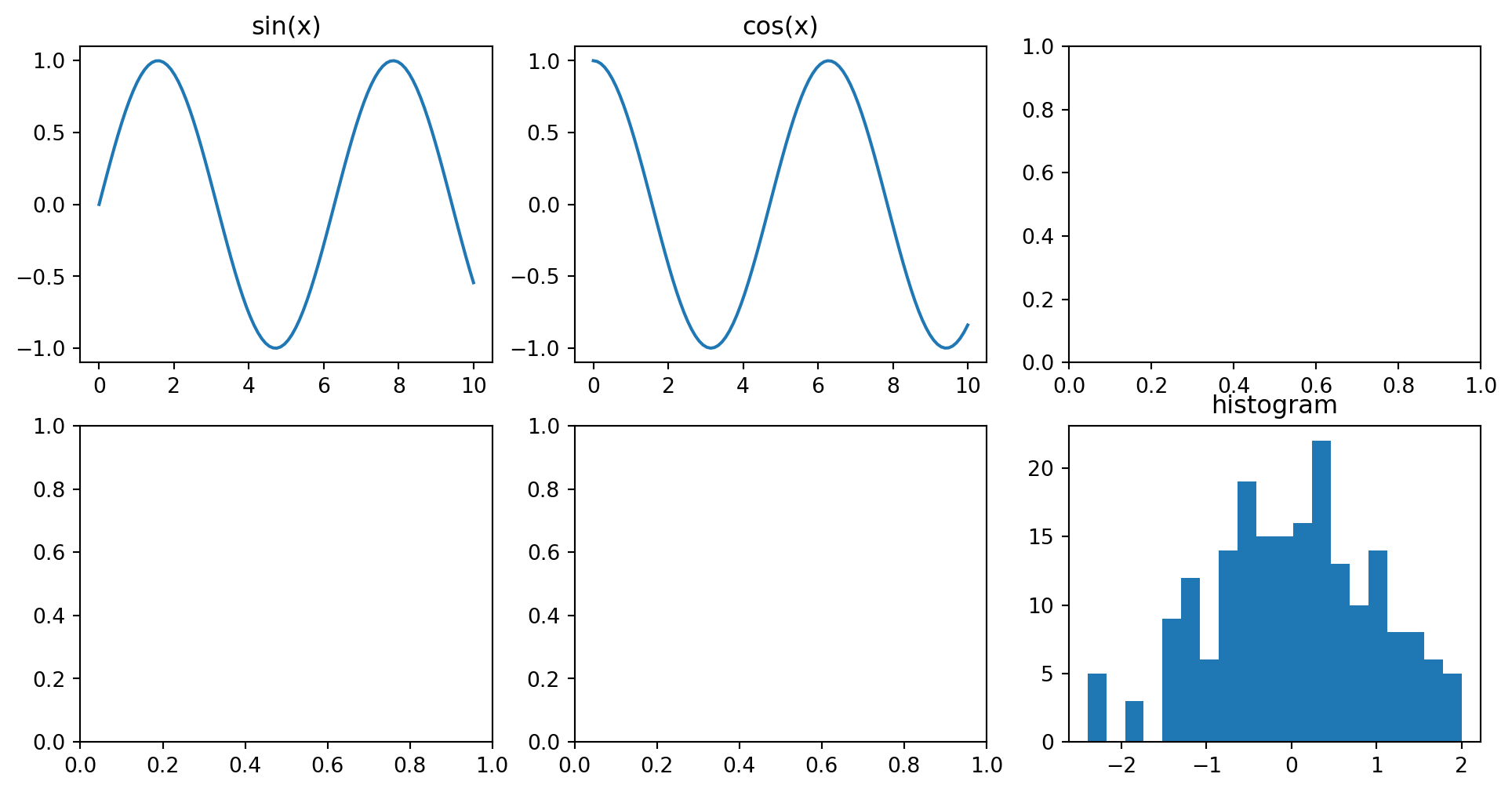

x = np.linspace(0, 10, 100)
rng = np.random.default_rng(0)

fig, axes = plt.subplots(nrows=2, ncols=3, figsize=(12, 6))

axes[0, 0].plot(x, np.sin(x))
axes[0, 0].set_title("sin(x)")

axes[0, 1].plot(x, np.cos(x))
axes[0, 1].set_title("cos(x)")

axes[1, 2].hist(rng.normal(size=200), bins=20)
axes[1, 2].set_title("histogram")

plt.show()

The shape of axes for plt.subplots(2, 3):

                  col 0        col 1        col 2
              ┌─────────┐  ┌─────────┐  ┌─────────┐
row 0         │axes[0,0]│  │axes[0,1]│  │axes[0,2]│
              └─────────┘  └─────────┘  └─────────┘
              ┌─────────┐  ┌─────────┐  ┌─────────┐
row 1         │axes[1,0]│  │axes[1,1]│  │axes[1,2]│
              └─────────┘  └─────────┘  └─────────┘

7.1.1 The single-row / single-column gotcha

When nrows=1 or ncols=1, the returned axes object may not be 2D.

fig, axes = plt.subplots(1, 3)  # shape (3,), a 1D array
axes[0].plot(...)              # works
axes[0, 0].plot(...)           # IndexError

fig, axes = plt.subplots(1, 1)  # a single Axes, not an array
axes.plot(...)                  # works
axes[0].plot(...)               # TypeError

Two ways to avoid thinking about this too much:

# Option A: always return a 2D array
fig, axes = plt.subplots(1, 3, squeeze=False)  # shape (1, 3)

# Option B: flatten and iterate
fig, axes = plt.subplots(2, 3)
for ax in axes.flat:
    ax.set_xlabel("x")

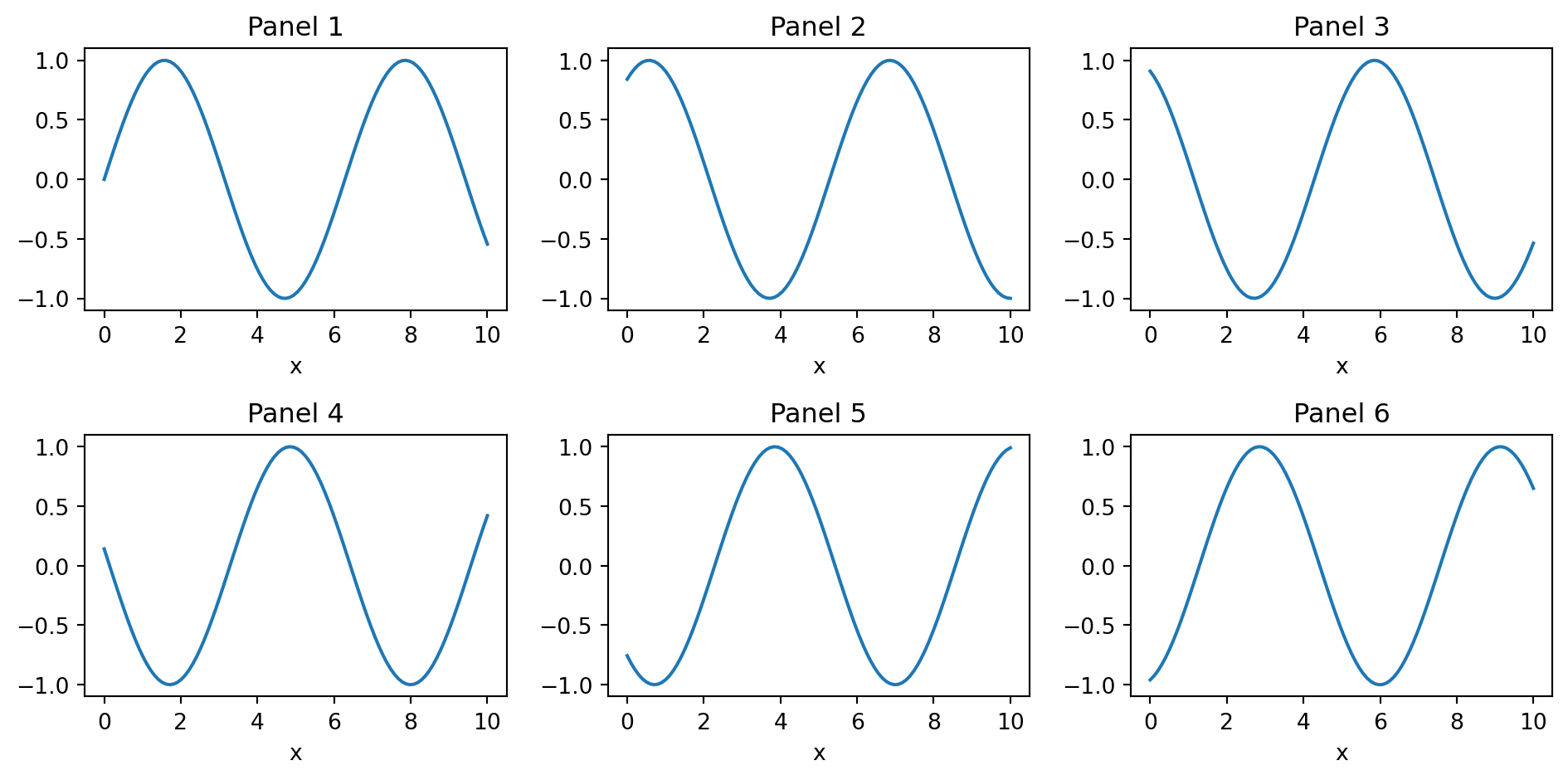

axes.flat gives a 1D iterator over all panels, regardless of grid shape. It is very useful for loop-driven plotting.

fig, axes = plt.subplots(2, 3, figsize=(10, 5))

for i, ax in enumerate(axes.flat):
    ax.plot(x, np.sin(x + i))
    ax.set_title(f"Panel {i + 1}")
    ax.set_xlabel("x")

fig.tight_layout()
plt.show()

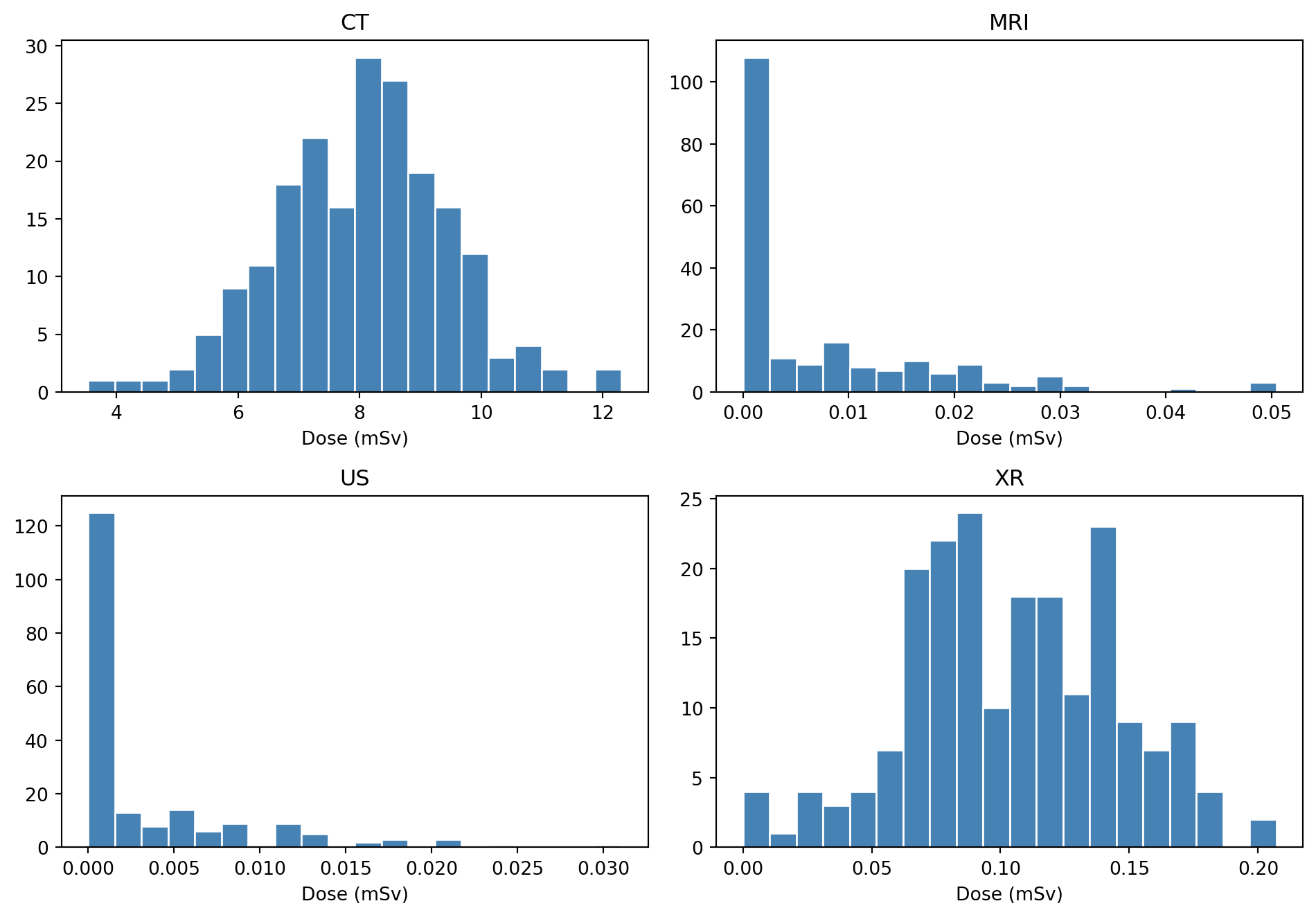

7.1.2 Looping over data and panels together

Faceted plotting in matplotlib is usually a for loop.

def simulate_dose_data(modality, n=200, seed=0):
    rng = np.random.default_rng(seed + hash(modality) % 1000)
    params = {
        "CT": (8.0, 1.5),
        "MRI": (0.0, 0.02),
        "US": (0.0, 0.01),
        "XR": (0.10, 0.04),
    }
    mean, sd = params[modality]
    return np.clip(rng.normal(mean, sd, n), 0, None)

modalities = ["CT", "MRI", "US", "XR"]
fig, axes = plt.subplots(2, 2, figsize=(10, 7))

for ax, modality in zip(axes.flat, modalities):
    data = simulate_dose_data(modality)
    ax.hist(data, bins=20, color="steelblue", edgecolor="white")
    ax.set_title(modality)
    ax.set_xlabel("Dose (mSv)")

fig.tight_layout()
plt.show()

This is the matplotlib equivalent of facet_wrap(~ modality). It is verbose, but it gives full control over each panel. If one modality needs a different x-range or annotation, use a normal if block inside the loop.

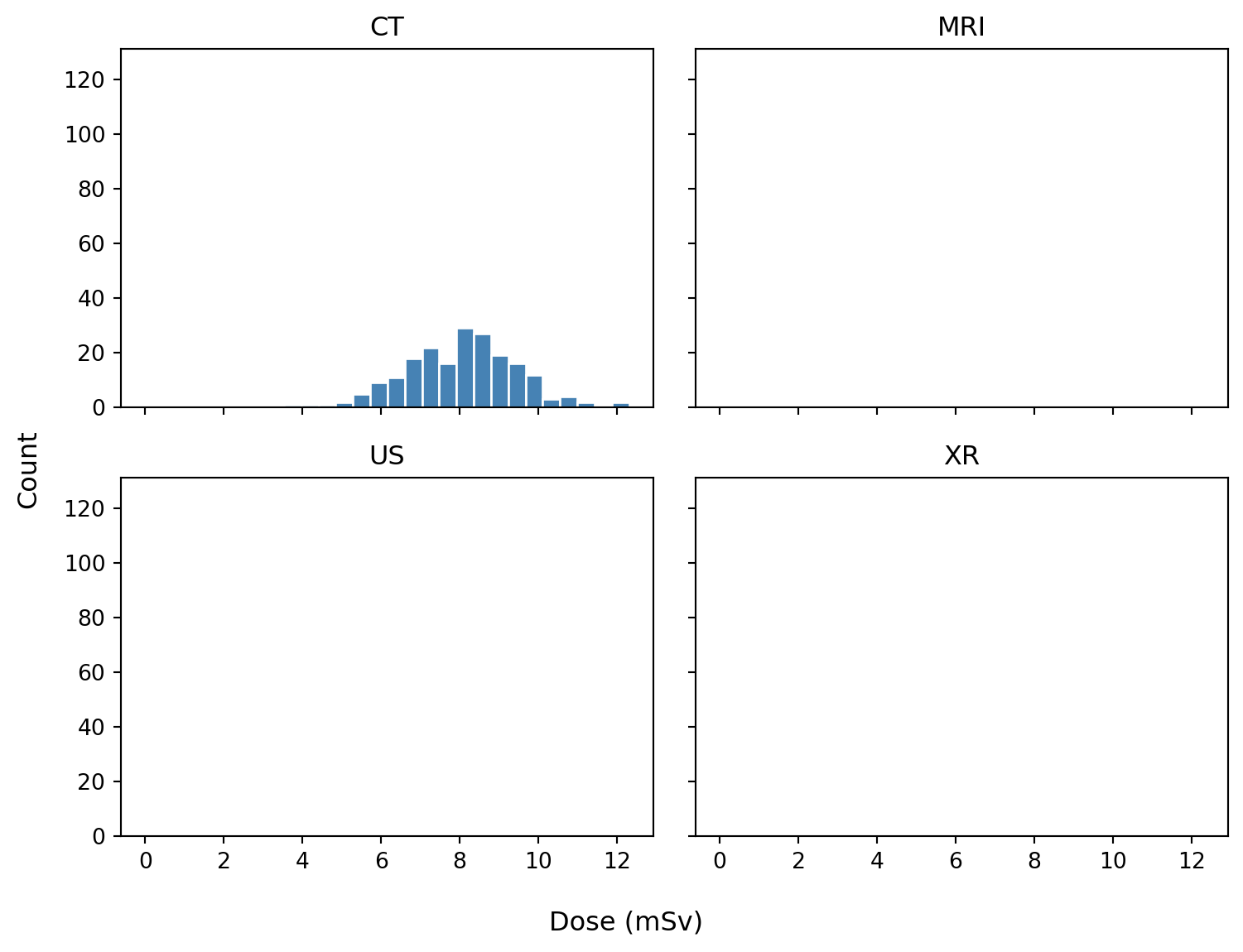

7.2 2. Shared axes: sharex and sharey

When panels show the same kind of data, shared scales make comparison easier.

fig, axes = plt.subplots(
    2,
    2,
    figsize=(8, 6),
    sharex=True,
    sharey=True,
)

for ax, modality in zip(axes.flat, modalities):
    data = simulate_dose_data(modality)
    ax.hist(data, bins=20, color="steelblue", edgecolor="white")
    ax.set_title(modality)

fig.supxlabel("Dose (mSv)")
fig.supylabel("Count")
fig.tight_layout()
plt.show()

With sharex=True, all panels use the same x-range, and matplotlib automatically hides repeated x tick labels except on the bottom row. sharey=True does the same for the y-axis.

Shared axes are useful when the reader should compare panels directly. Avoid sharing axes when panels genuinely need different scales to reveal different structures.

Shared versus independent y-axes:

sharey=True                         sharey=False (default)
─────────────────                   ─────────────────
20│ ┌──────┐ ┌──────┐              20│ ┌──────┐   5│ ┌──────┐
10│ │  ╱   │ │  ╱╲  │              10│ │  ╱   │   3│ │  ╱╲  │
 0└─┴──────┘ └──────┘               0└─┴──────┘   0└─┴──────┘
   panels comparable                    panels independent

For more control, specific axes can be shared after creation:

fig, axes = plt.subplots(1, 3)
axes[1].sharey(axes[0])
axes[2].sharey(axes[0])

After sharing, zooming or changing limits on one shared axis affects the others.

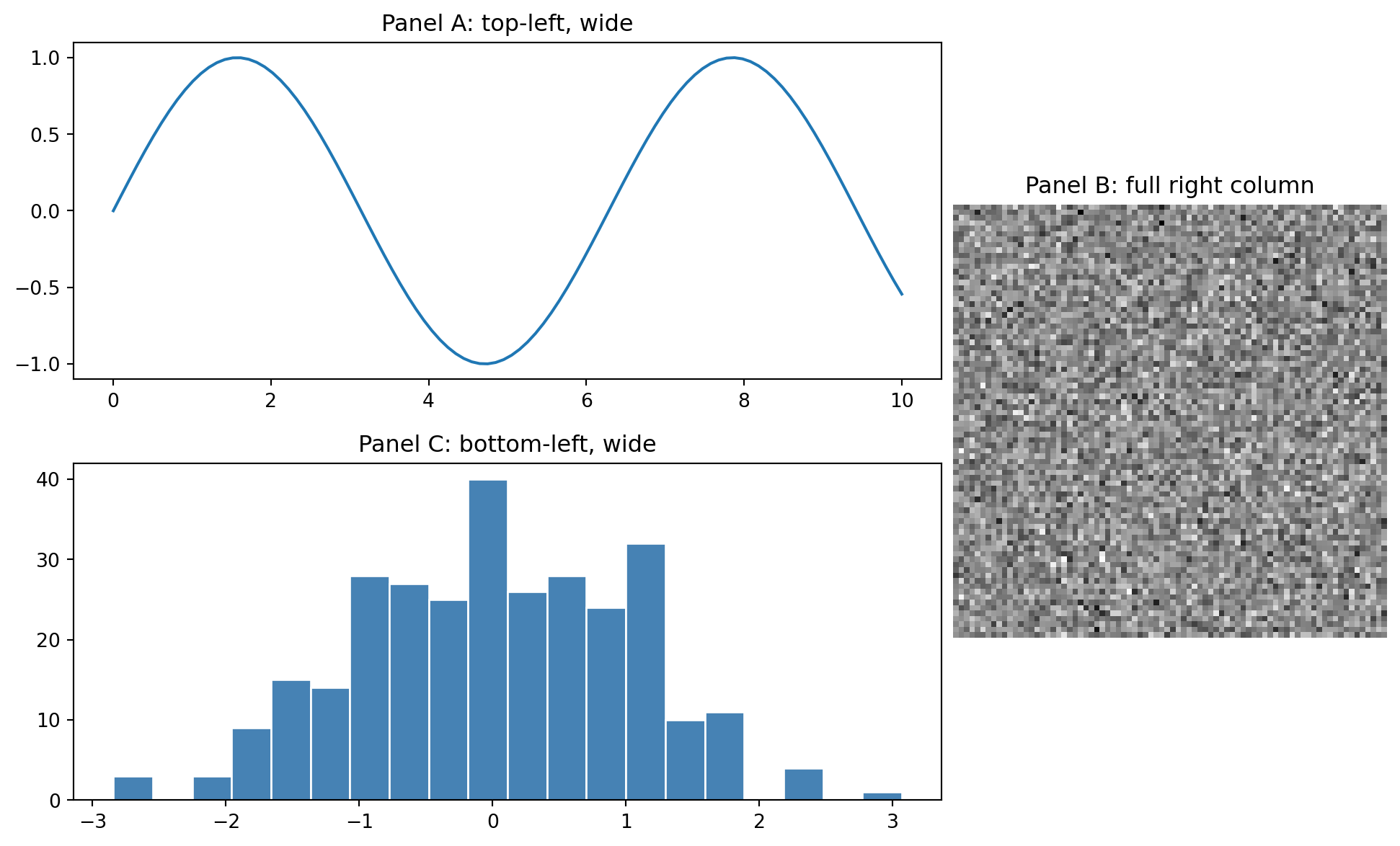

7.3 3. subplot_mosaic: the modern favorite

For irregular layouts, subplot_mosaic() is often more readable than GridSpec. You describe the layout as a string or list, and panels are returned as a dictionary keyed by name.

image_data = rng.normal(0, 1, size=(80, 80))
values = rng.normal(size=300)

fig, axd = plt.subplot_mosaic(
    """
    AAB
    CCB
    """,
    figsize=(10, 6),
    layout="constrained",
)

axd["A"].plot(x, np.sin(x))
axd["A"].set_title("Panel A: top-left, wide")

axd["B"].imshow(image_data, cmap="gray")
axd["B"].set_title("Panel B: full right column")
axd["B"].axis("off")

axd["C"].hist(values, bins=20, color="steelblue", edgecolor="white")
axd["C"].set_title("Panel C: bottom-left, wide")

plt.show()

The mosaic string "AAB / CCB" produces this layout:

┌───────────────┬───────┐
│               │       │
│       A       │       │
│               │       │
├───────────────┤   B   │
│               │       │
│       C       │       │
│               │       │
└───────────────┴───────┘

Each character is one cell in a grid. Repeating a character makes that panel span cells. Use . for empty cells:

"""
AAB
.CB
"""

This makes many irregular layouts simple and readable.

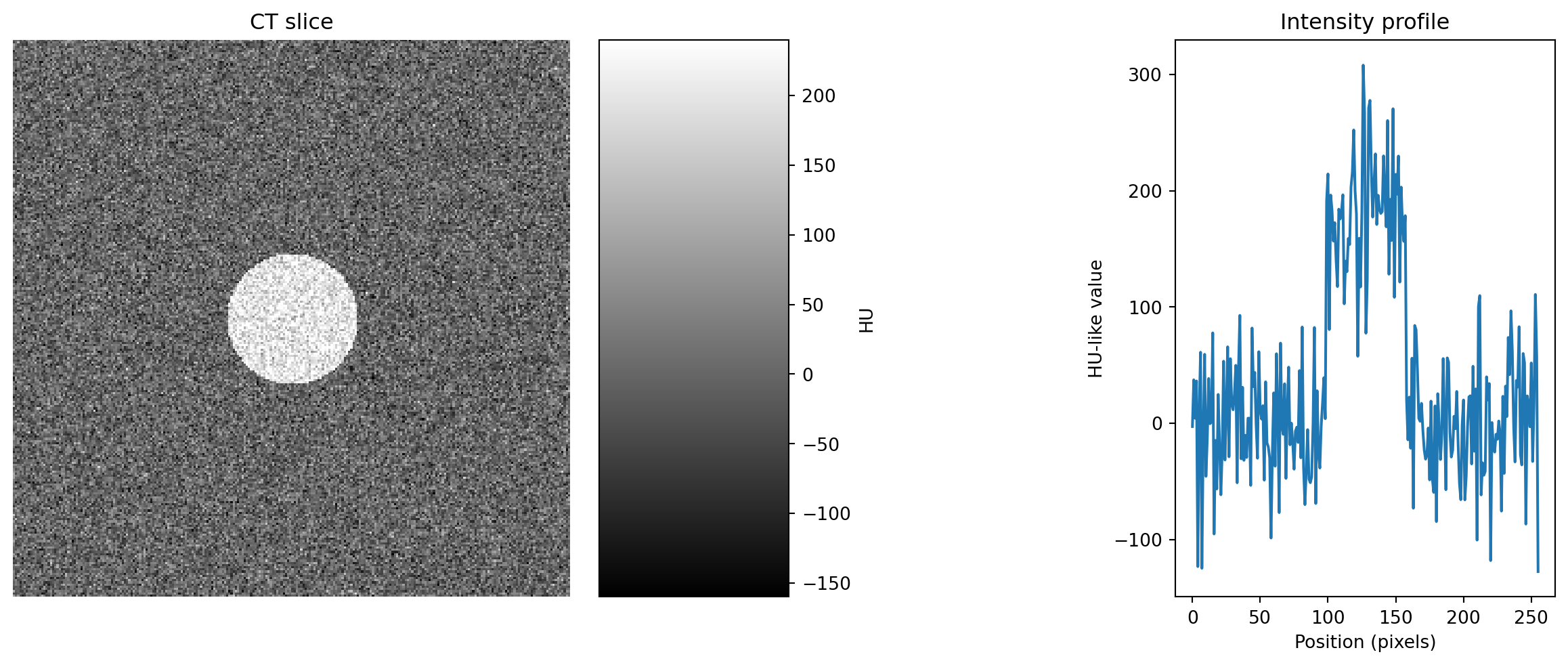

7.3.1 The radiology pattern: image + colorbar + plot

A common publication layout has a large image, a dedicated colorbar slot, and a side panel for a quantitative plot.

slice_2d = rng.normal(0, 50, (256, 256))
yy, xx = np.ogrid[:256, :256]
slice_2d[(xx - 128) ** 2 + (yy - 128) ** 2 < 30 ** 2] += 200
profile_x = np.arange(slice_2d.shape[1])
profile_y = slice_2d[128, :]

fig, axd = plt.subplot_mosaic(
    """
    IIIC.PP
    IIIC.PP
    IIIC.PP
    """,
    figsize=(12, 5),
    gridspec_kw={"wspace": 0.1},
    layout="constrained",
)

im = axd["I"].imshow(slice_2d, cmap="gray", vmin=-160, vmax=240)
axd["I"].set_title("CT slice")
axd["I"].axis("off")

fig.colorbar(im, cax=axd["C"], label="HU")

axd["P"].plot(profile_x, profile_y)
axd["P"].set_title("Intensity profile")
axd["P"].set_xlabel("Position (pixels)")
axd["P"].set_ylabel("HU-like value")

plt.show()

cax= tells colorbar() to draw into an existing Axes. This is different from ax=, which tells matplotlib which axes to steal space from.

That distinction is the trick for placing a colorbar exactly where it should go.

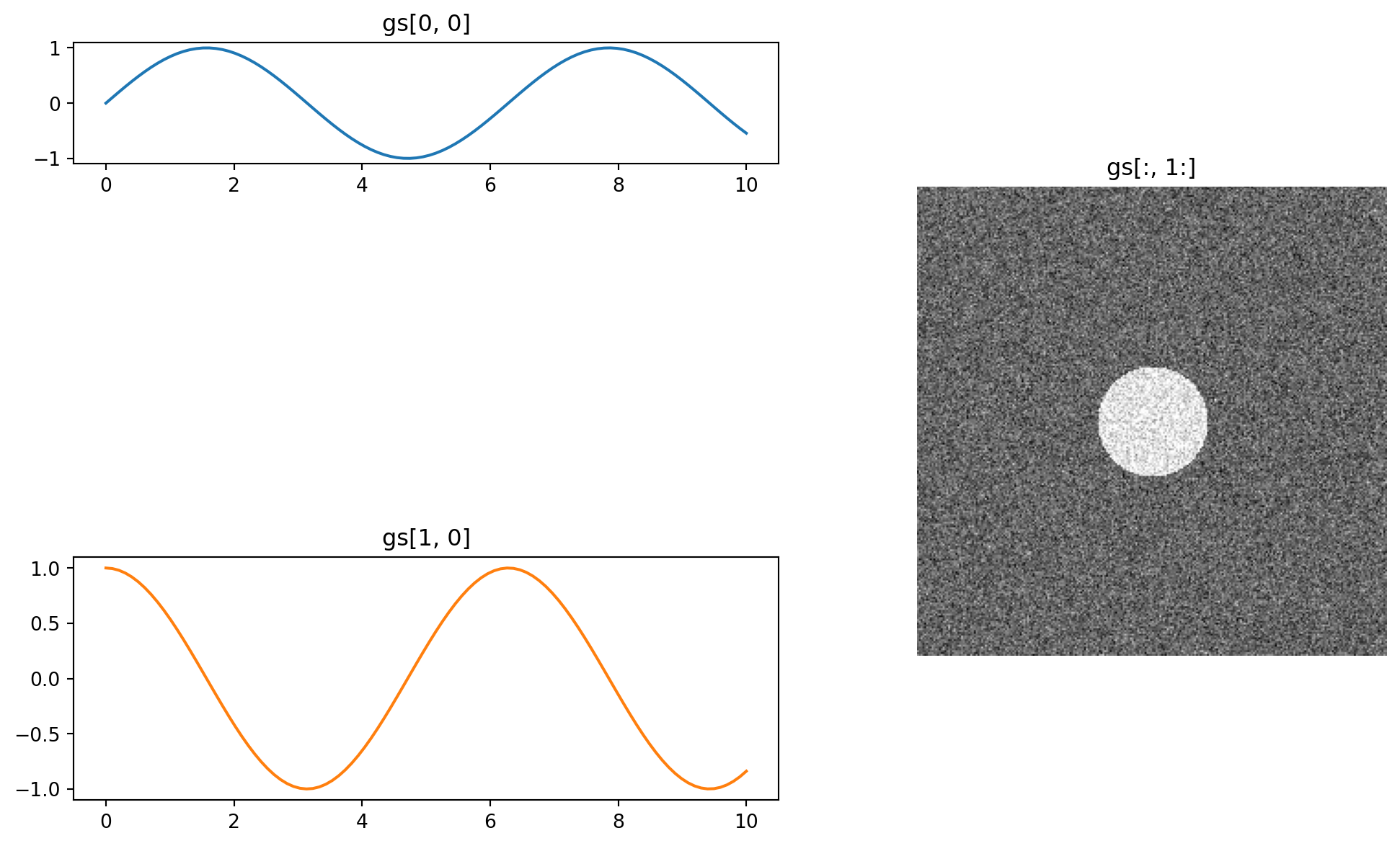

7.4 4. GridSpec: when mosaic is not enough

GridSpec is the lower-level layout engine behind subplots() and subplot_mosaic().

Reach for it when you need:

• different relative widths or heights per row/column
• programmatic generation of a grid from computed positions
• fine control beyond what a mosaic string can express

import matplotlib.gridspec as gridspec

fig = plt.figure(figsize=(10, 6), layout="constrained")
gs = gridspec.GridSpec(
    2,
    3,
    figure=fig,
    width_ratios=[3, 1, 1],
    height_ratios=[1, 2],
    wspace=0.3,
    hspace=0.4,
)

ax1 = fig.add_subplot(gs[0, 0])   # top-left
ax2 = fig.add_subplot(gs[1, 0])   # bottom-left
ax3 = fig.add_subplot(gs[:, 1:])  # right side, all rows

ax1.plot(x, np.sin(x))
ax1.set_title("gs[0, 0]")

ax2.plot(x, np.cos(x), color="C1")
ax2.set_title("gs[1, 0]")

ax3.imshow(slice_2d, cmap="gray", vmin=-160, vmax=240)
ax3.set_title("gs[:, 1:]")
ax3.axis("off")

plt.show()

GridSpec slicing works like NumPy slicing:

gs[0, 0]     one cell, top-left
gs[0, :]     entire top row
gs[:, 0]     entire left column
gs[1:, 1:]   bottom-right block
gs[0, 1:3]   top row, columns 1 and 2

For most use cases, subplot_mosaic() covers the same ground more readably. Use GridSpec mainly when widths or heights need to be uneven or computed programmatically.

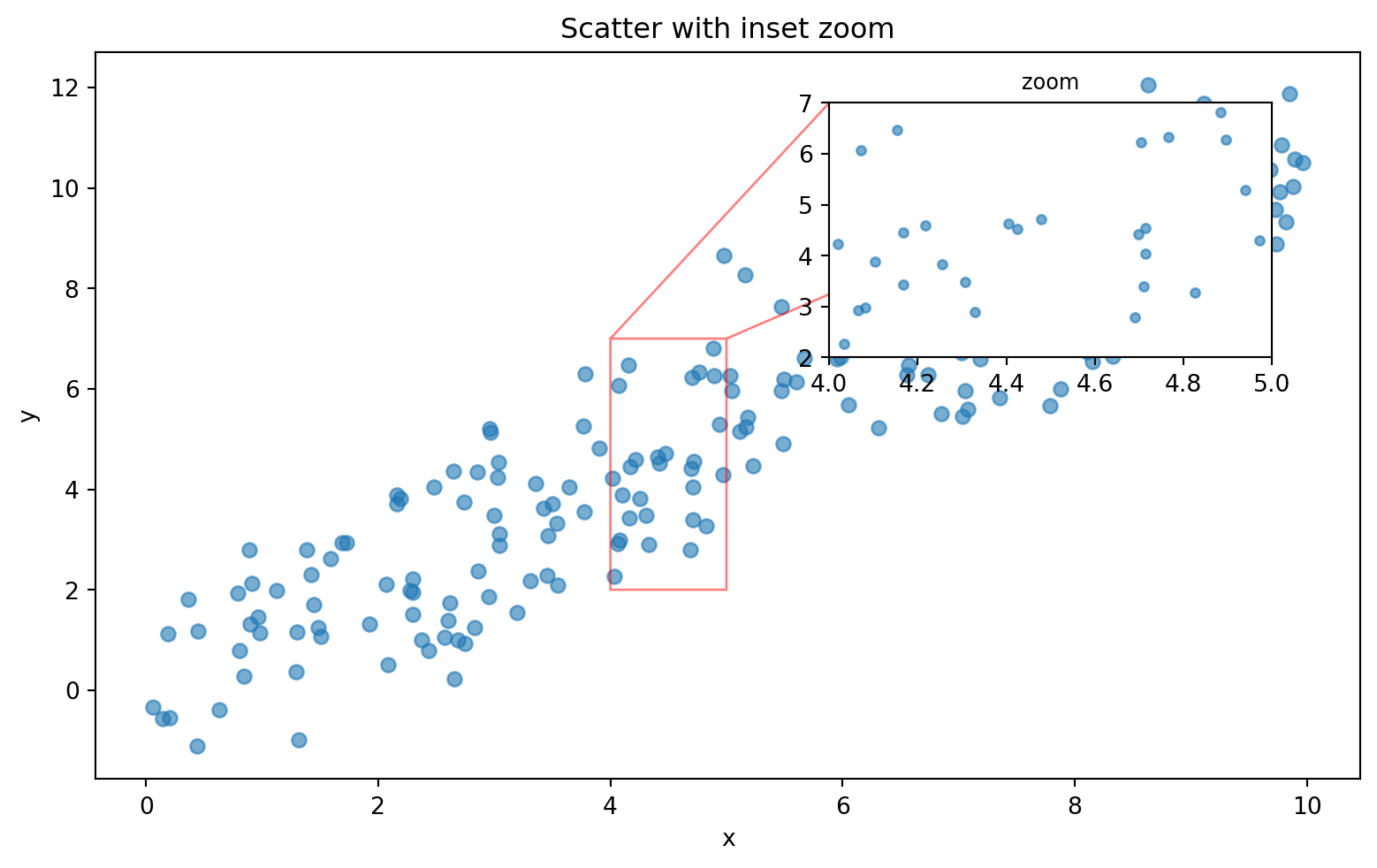

7.5 5. Inset axes: a small plot inside a big plot

Insets are useful for zoom-in views, small legends, or local statistics.

x_scatter = rng.uniform(0, 10, 200)
y_scatter = x_scatter + rng.normal(0, 1.2, 200)

fig, ax = plt.subplots(figsize=(8, 5), layout="constrained")
ax.scatter(x_scatter, y_scatter, alpha=0.6)
ax.set_xlabel("x")
ax.set_ylabel("y")
ax.set_title("Scatter with inset zoom")

# Inset relative to the parent axes: [left, bottom, width, height]
inset = ax.inset_axes([0.58, 0.58, 0.35, 0.35])
inset.scatter(x_scatter, y_scatter, alpha=0.6, s=15)
inset.set_xlim(4, 5)
inset.set_ylim(2, 7)
inset.set_title("zoom", fontsize=9)

ax.indicate_inset_zoom(inset, edgecolor="red")
plt.show()

Two clean approaches:

# Way 1: absolute figure coordinates, all in 0–1 of the figure
inset = fig.add_axes([0.6, 0.6, 0.25, 0.25])

# Way 2: relative to the parent axes, often more useful
inset = ax.inset_axes([0.6, 0.6, 0.35, 0.35])

ax.indicate_inset_zoom() is especially helpful: it draws the rectangle and connecting lines automatically after the inset limits define the zoomed region.

7.6 6. Spacing and layout

Panel spacing is a perennial matplotlib headache. Three layout approaches matter:

fig.tight_layout()                    # classic, adjusts after the fact
fig.set_layout_engine("constrained")  # newer, smarter layout engine
plt.subplots(..., layout="constrained")

Layout managers
─────────────────────────────────────────
tight_layout    Old standard. Usually fine, but can glitch with colorbars.

constrained     Newer and more robust. Handles colorbars, suptitles,
                and shared axes better. Usually the right choice.

manual          fig.subplots_adjust(left=, right=, ...)
                Use only when exact control is needed.

For modern code, prefer:

fig, axes = plt.subplots(2, 2, figsize=(10, 7), layout="constrained")

For fine-tuning, wspace and hspace control gaps between panels:

fig, axes = plt.subplots(2, 2, gridspec_kw={"wspace": 0.4, "hspace": 0.5})

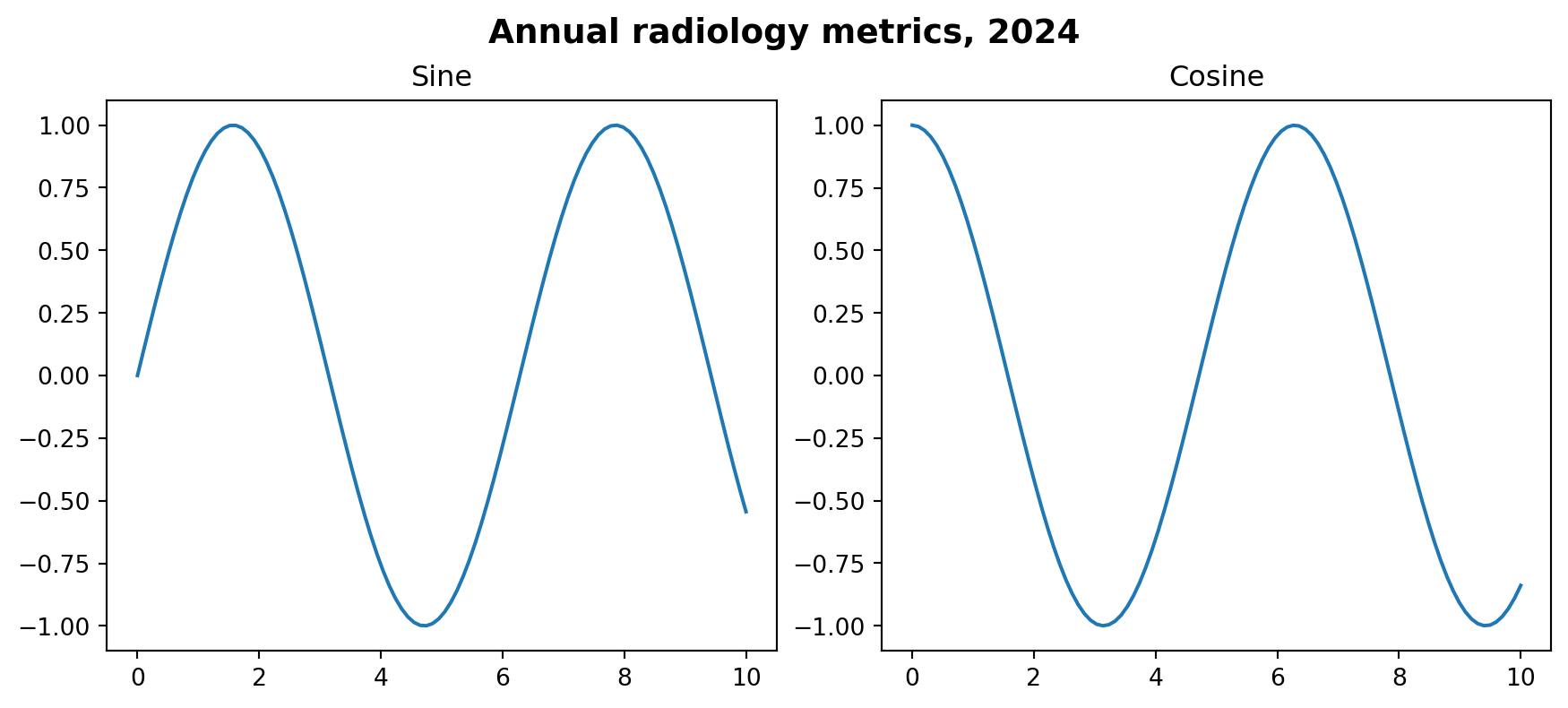

7.7 7. A super-title above everything

fig.suptitle() titles the whole figure. Each ax.set_title() titles one panel.

fig, axes = plt.subplots(1, 2, figsize=(9, 4), layout="constrained")
axes[0].plot(x, np.sin(x))
axes[0].set_title("Sine")
axes[1].plot(x, np.cos(x))
axes[1].set_title("Cosine")

fig.suptitle("Annual radiology metrics, 2024", fontsize=14, fontweight="bold")
plt.show()

With layout="constrained", suptitles and panel titles usually coexist without overlap.

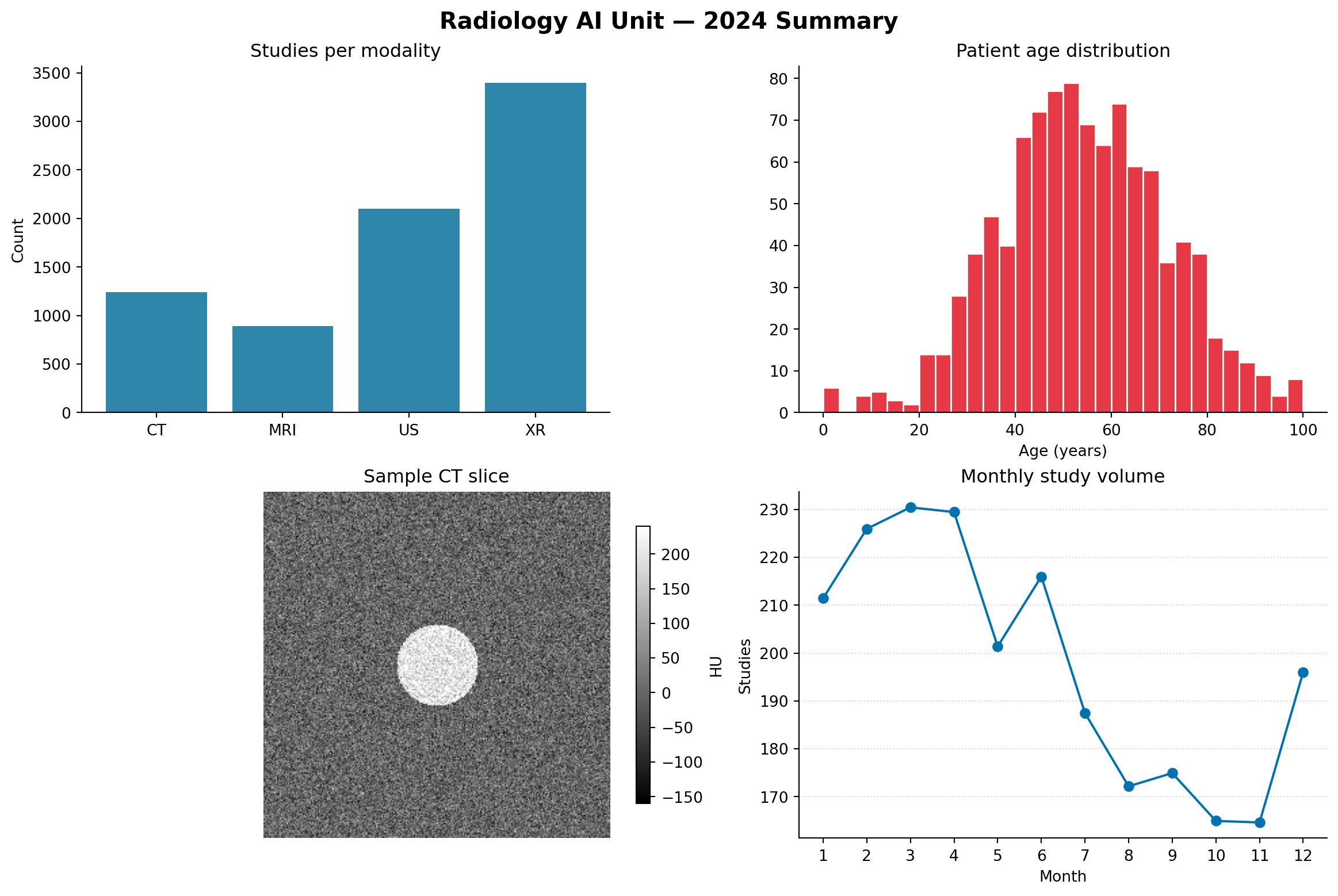

7.8 8. Complete example: radiology dashboard

This 2×2 dashboard combines several patterns from the module.

rng = np.random.default_rng(0)

# Simulated data
modalities = ["CT", "MRI", "US", "XR"]
counts = [1240, 890, 2100, 3400]
ages = rng.normal(55, 18, 1000).clip(0, 100)
slice_2d = rng.normal(0, 50, (256, 256))
yy, xx = np.ogrid[:256, :256]
slice_2d[(xx - 128) ** 2 + (yy - 128) ** 2 < 30 ** 2] += 200
months = np.arange(1, 13)
volume = 200 + 30 * np.sin(months / 2) + rng.normal(0, 10, 12)

fig, axd = plt.subplot_mosaic(
    """
    AB
    CD
    """,
    figsize=(12, 8),
    layout="constrained",
)

# A: bar chart
axd["A"].bar(modalities, counts, color="#2E86AB")
axd["A"].set_title("Studies per modality")
axd["A"].set_ylabel("Count")
axd["A"].spines[["top", "right"]].set_visible(False)

# B: histogram
axd["B"].hist(ages, bins=30, color="#E63946", edgecolor="white")
axd["B"].set_title("Patient age distribution")
axd["B"].set_xlabel("Age (years)")
axd["B"].spines[["top", "right"]].set_visible(False)

# C: image with colorbar
im = axd["C"].imshow(slice_2d, cmap="gray", vmin=-160, vmax=240)
axd["C"].set_title("Sample CT slice")
axd["C"].axis("off")
fig.colorbar(im, ax=axd["C"], shrink=0.8, label="HU")

# D: time series
axd["D"].plot(months, volume, marker="o", color="#0072B2")
axd["D"].set_title("Monthly study volume")
axd["D"].set_xlabel("Month")
axd["D"].set_ylabel("Studies")
axd["D"].set_xticks(months)
axd["D"].spines[["top", "right"]].set_visible(False)
axd["D"].grid(True, axis="y", linestyle=":", alpha=0.5)

fig.suptitle("Radiology AI Unit — 2024 Summary", fontsize=15, fontweight="bold")
plt.show()

Notice the patterns:

• consistent spine treatment across panels
• consistent palette
• the image gets a colorbar through fig.colorbar(im, ax=axd["C"])
• layout="constrained" keeps the figure readable without manual spacing tweaks

7.9 ggplot2 → matplotlib multi-panel cheat sheet

ggplot2 / patchwork	matplotlib
facet_wrap(~ var)	plt.subplots() + for-loop over groups
facet_grid(row ~ col)	plt.subplots(nrows, ncols) + manual loop over row/column/group
patchwork: p1 + p2 / p3	plt.subplot_mosaic("AB;CC")
patchwork: p1 + plot_layout(...)	GridSpec(width_ratios=, height_ratios=)
inset_element(p2, ...)	ax.inset_axes(...)

The honest difference: ggplot2 plus patchwork is usually more concise for non-trivial layouts. Matplotlib’s looser grid gives more independent control over each panel, which matters in scientific publishing.

7.10 Exercises

7.10.1 Exercise 1

Make a 2×2 grid of histograms, one for each distribution:

• Normal(0, 1)
• Normal(0, 2)
• Uniform(-3, 3)
• Exponential(1) using rng.exponential(1, 200)

Use sharex=True and sharey=True so the panels are directly comparable. Title each panel with the distribution name and add fig.suptitle("Distribution comparison").

7.10.2 Exercise 2

Use subplot_mosaic() to create this layout, then populate each panel with a different plot:

AABB
AABB
CCDE

A and B are large top panels. C, D, and E are small bottom panels, with C wider than D and E.

7.10.3 Exercise 3

Create a 1×3 figure showing the same simulated CT slice in three different windows: soft tissue, lung, and bone. Use the width/level to vmin/vmax conversions from Module 5. Use sharex and sharey to lock the panels together.

Add one shared colorbar to the right of all three panels. Hint: create an extra axes for the colorbar with subplot_mosaic(), such as "ABCD" where D is the colorbar slot, then pass it using cax=axd["D"].

7.10.4 Exercise 4

Make a scatter plot with an inset zoom: 200 random points where y = x + noise with x ~ Uniform(0, 10). The main plot shows everything. The inset in the top-right corner shows only x ∈ [4, 5].

Use ax.inset_axes() and ax.indicate_inset_zoom() to draw the connecting lines automatically.

7.10.5 Exercise 5

Reproduce the 2×2 radiology dashboard from section 8 with two changes:

1. add a fifth panel for a boxplot of dose by modality, using a subplot_mosaic() layout of your design
2. make all panels share a common style: consistent font sizes, spine treatment, and color palette

7.11 Key takeaways

• A multi-panel figure is one Figure containing multiple Axes objects.
• plt.subplots() is the default tool for regular grids.
• axes.flat is the practical way to loop over panels.
• Faceting in matplotlib is a loop over axes and data groups.
• Use sharex and sharey when panels should be visually comparable.
• Use subplot_mosaic() for readable irregular layouts.
• Use cax= when a colorbar should occupy a dedicated axes.
• Prefer layout="constrained" for modern multi-panel layout management.
• Use ax.inset_axes() for zoomed or contextual inset panels.
